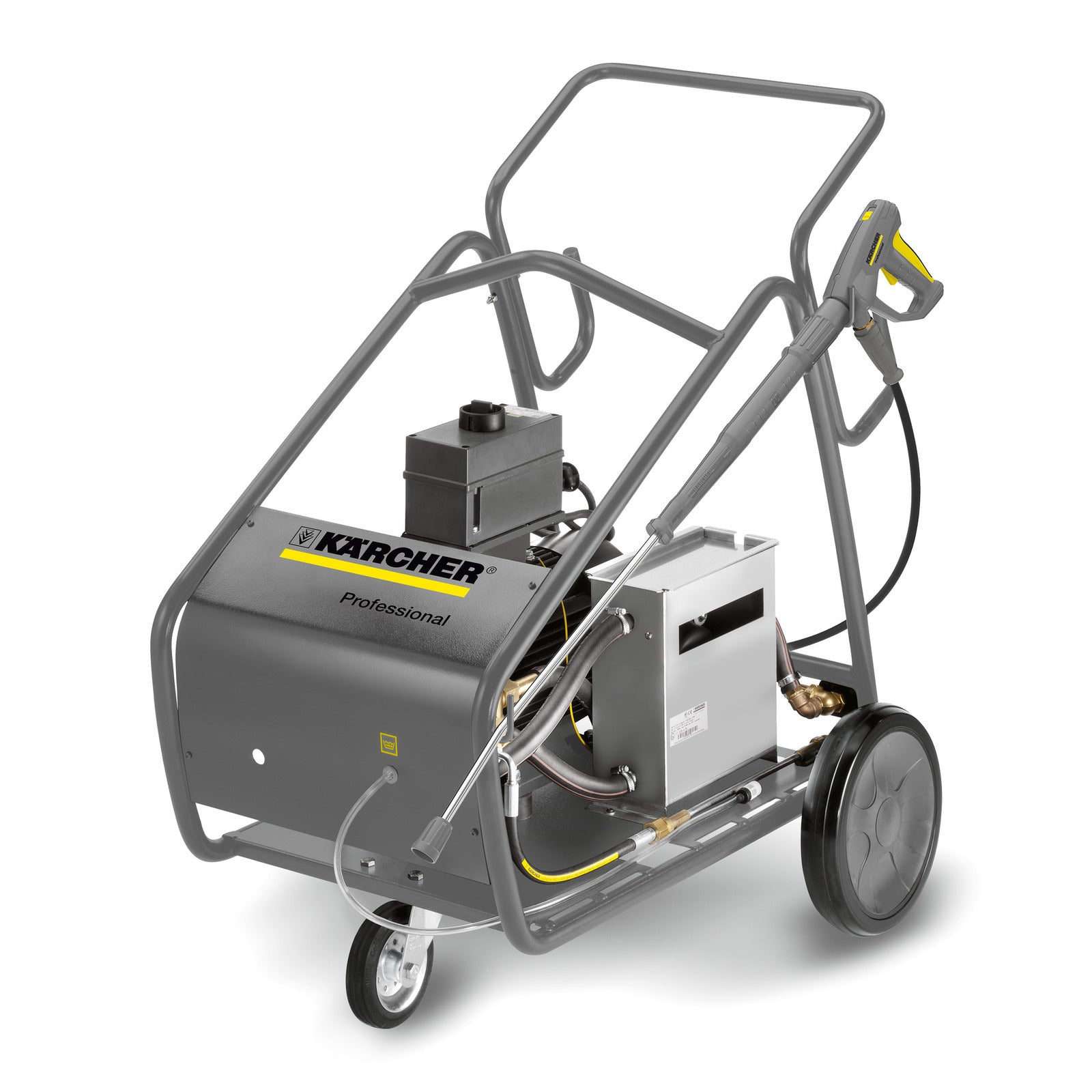

Karcher HD 10/16-4 Cage Ex Cold Water Pressure Washer 1.353-904.0

Engineered for hazardous environments, the Kärcher HD 10/16-4 Cage Ex is a specialist cold water pressure washer designed for safe operation in ATEX-rated explosive zones. Combining robust construction, advanced safety features, and reliable performance, it delivers powerful cleaning where standard machines simply cannot be used.

ATEX-Certified for Hazardous Areas

Specifically developed for use in potentially explosive environments, this machine complies with ATEX category II 2 G c T3 standards. All components are designed to prevent ignition risks, with conductive materials and controlled surface temperatures ensuring safe operation in high-risk industrial settings.

Reliable Industrial Cleaning Power

Delivering 160 bar working pressure and a high flow rate of up to 1000 l/h, the HD 10/16-4 Cage Ex provides consistent, effective cleaning performance for machinery, tanks, pipelines, and work areas.

Built for Durability & Continuous Use

At its core is a high-performance crankshaft pump with ceramic pistons, combined with a 4-pole low-speed motor. This heavy-duty setup ensures long service life, reduced wear, and dependable operation in demanding environments.

Explosion-Proof & Protective Design

The machine features a powder-coated, electrically conductive cage frame, providing maximum protection and allowing safe handling—even via crane. Conductive rubber components and controlled surface temperatures (below 200°C) further enhance safety in ATEX zones.

Ergonomic & Efficient Operation

Equipped with Kärcher’s EASY!Force trigger gun, the machine reduces operator fatigue by eliminating the need to hold pressure on the trigger. The EASY!Lock system enables fast, secure accessory changes, improving efficiency during intensive cleaning tasks.

Key Features

• ATEX-certified (II 2 G c T3) for explosive environments
• Up to 160 bar working pressure
• High flow rate of 1000 l/h
• Durable crankshaft pump with ceramic pistons
• 4-pole low-speed motor for long service life
• Electrically conductive cage frame with crane lifting point
• Surface temperature kept below 200°C for safety
• EASY!Force trigger gun for fatigue-free use
• EASY!Lock system for quick accessory changes

Scope of Supply

• EASY!Force trigger gun (Ex protection)

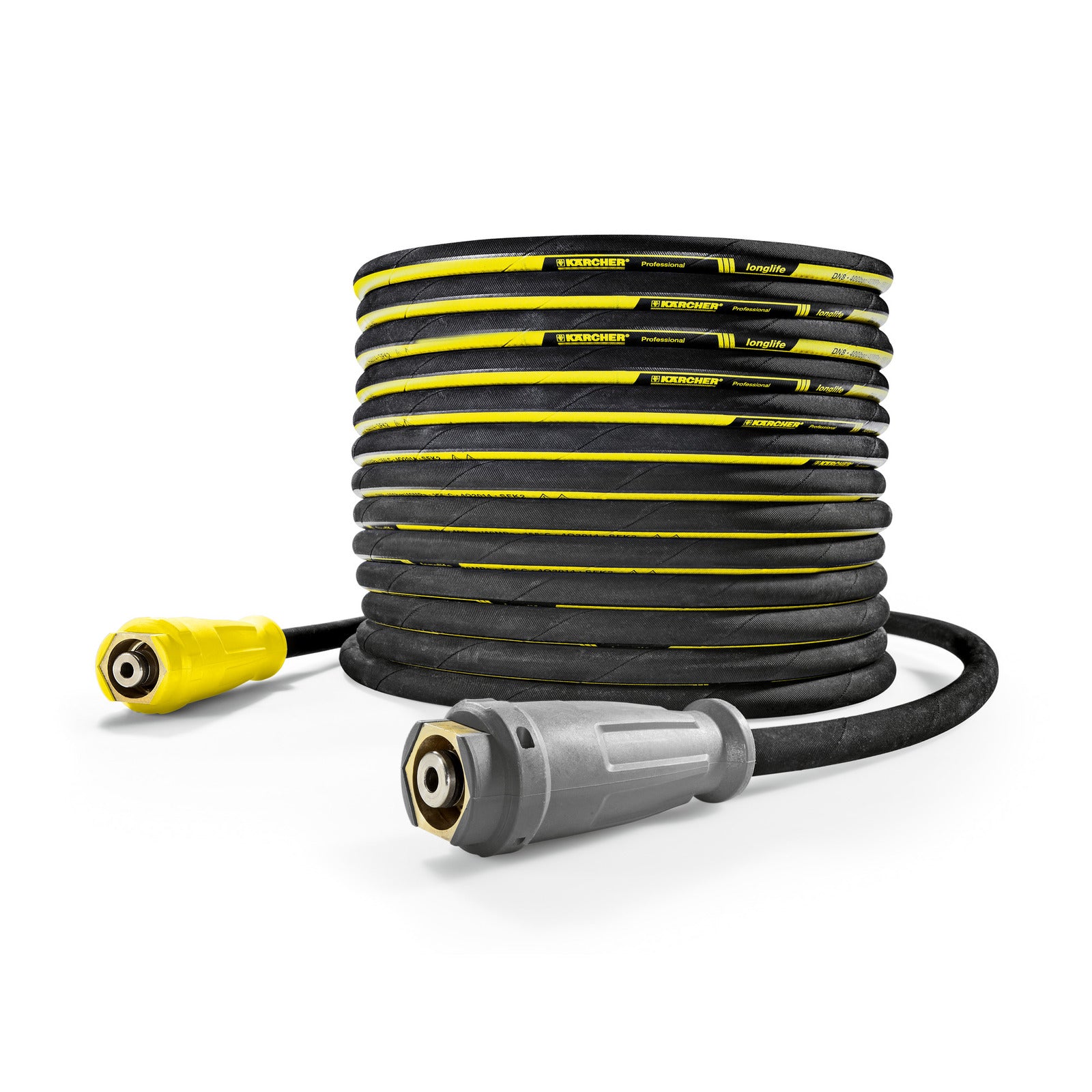

• 10m high-pressure hose (DN8, 400 bar, conductive)

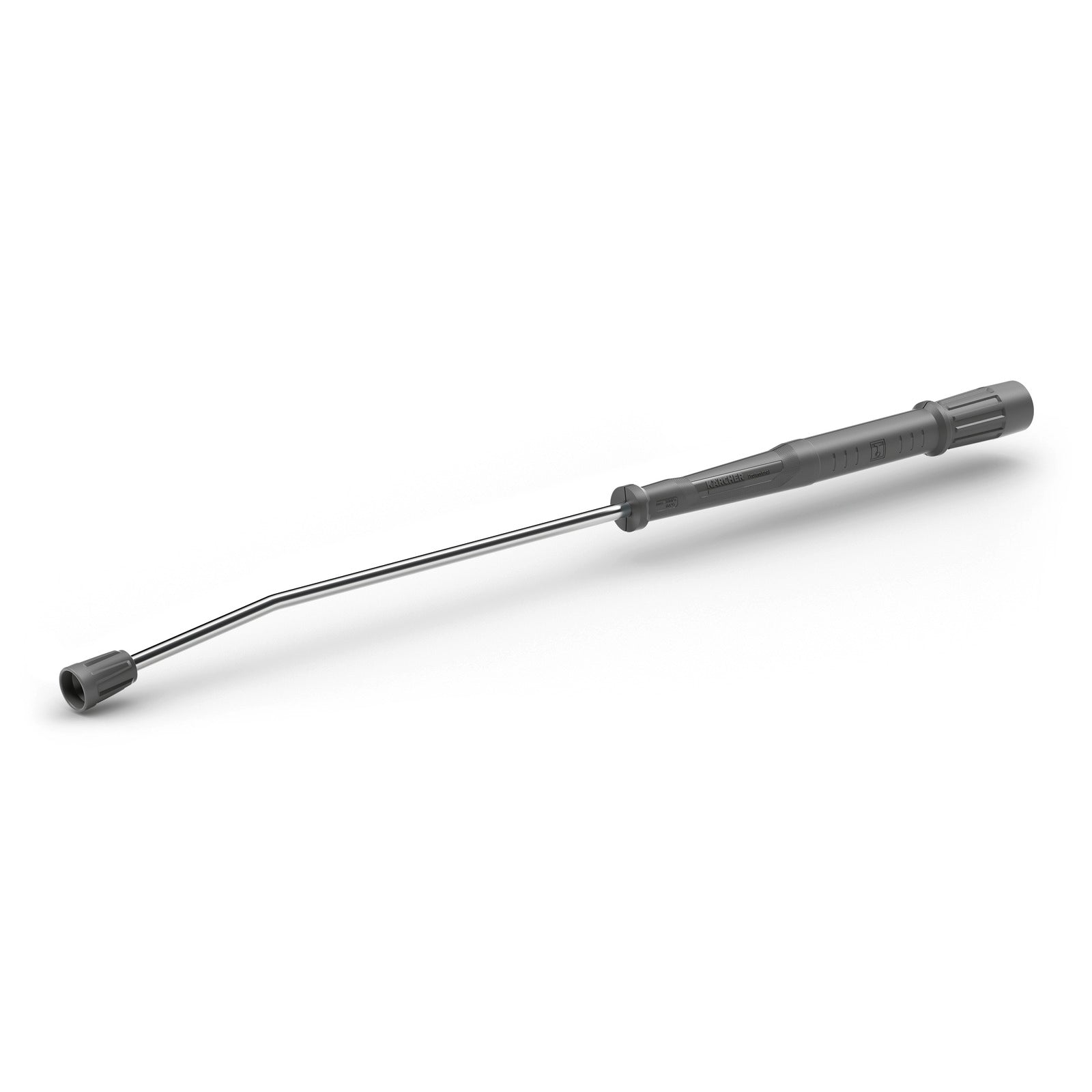

• Stainless steel spray lance (1050 mm, conductive)
• Power nozzle
• High-pressure spray lance

Ideal For

• Chemical plants and refineries
• Oil, gas, and fuel depots
• Industrial production facilities
• Hazardous and explosion-risk environments
• Any ATEX-regulated cleaning application
