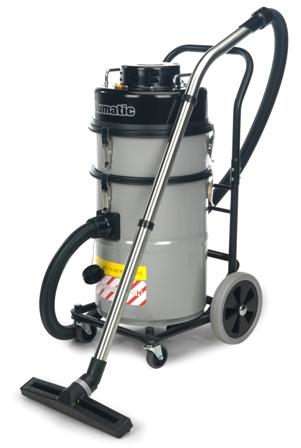

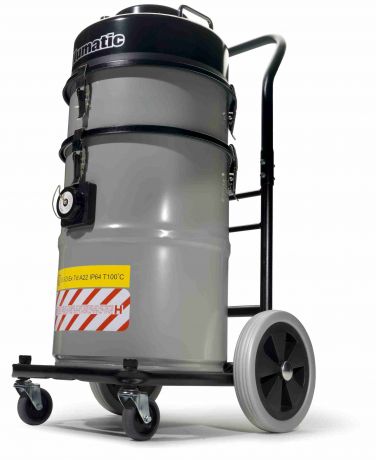

ATX750-2 Atex Zone 22 Class H Vacuum Cleaner - Numatic

   THIS MACHINE IS DISCONTINUED - PLEASE SEE THIS MACHINE AS AN ALTERNATIVE.

The ATX 750-2 is approved for use in Zone 22 D (dust)  "H" Class environments. These environments contain dust that is potentially explosive, such as bakeries, flour mills, sugar and coffee processing areas. It is also suitable for standard hazardous dust such as asbestos.

Certification is as follows: Class H, Zone 22,  II 3 D Ex tD A22 IP64 T100^oC.

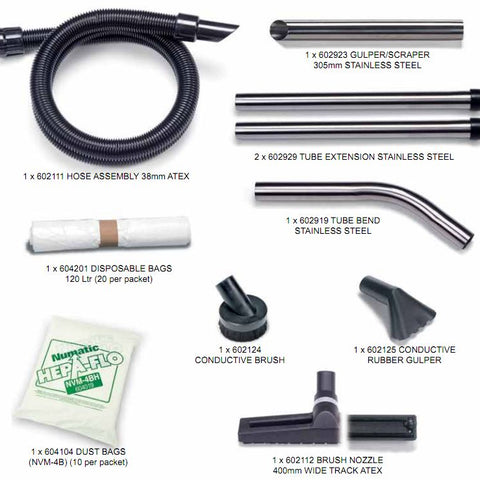

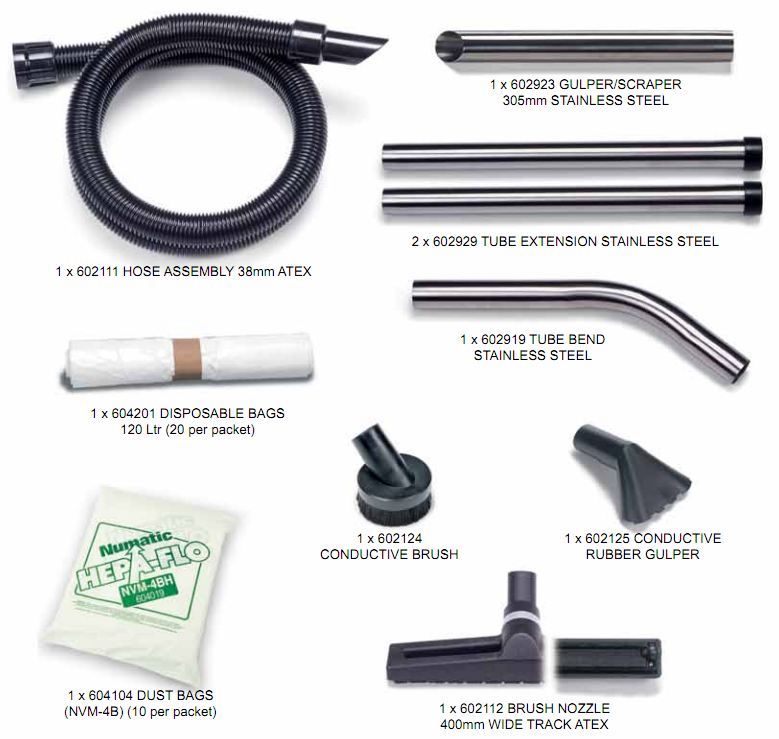

Comes supplied with full Atex Kit shown above in additional images.

Risk Assesment:

To ensure this machine is used in the appropriate area (Zone 22), a formal risk assessment must be carried out by a competent person or certified body in order to meet the latest ATEX 137 Directive 1999/92/EC.

Visit www.hse.gov.uk (for the UK only)

1. Spark ignition sensitivity
2. Hot surface ignition sensitivity (cloud)
3. Hot surface ignition sensitivity (layer/depth)
4. Thermal instability
5. Chemical instability
6. Static electricity generation
7. Explosion severity
8. Flammable gas generation
9. Impact of collected materials
10. Burning behaviour
11. The ATEX certification code for the machine being assessed
12. For dust with ignition energy, less than 1mJ additional restrictions of the labour authorities may apply
